Mercedes Sprinter 2011-

For our Range of Dunlop Air Suspension kits please visit our new separate website at www.dunlop-systems.uk

Please note that prices on the new site are around 20-25% cheaper overall at the time of launch and photos are more detailed, accurate and up to date. As always if you have questions please do email or call.




The Mercedes 200/300 Sprinter and VW Crafter vans are used as vans, minibuses and converted into motor-homes. This rear end air suspension kit fit the latest Mercedes and Volkswagen vehicles.

This rear end assistance kit is fitted in addition to the existing rear suspension in place of the bump-stop. The kit will improve ride quality, handling, towing, and stability. It will also aid clearance on motor-homes with very long rear overhangs although sometimes an OBA kit is required to achieve the best from the kit if clearance is an issue. Fitted with just a few bolts this kit is exceptionally easy to fit and is fully reversible if required.

Kits start from £660 for the rear end bag and bracket kit, and can be fitted with or without onboard air supply. All installs are conducted to meet clients specific requirements, and this kit can be installed for you for £280.


 Supply Basic Front End Kit

A basic front end kit for self install, which does require bracket welding. If you would like us to fit it please get in contact. This kit can be used as load support and is ideal on A class motorhomes, but also for low weight vehicles requiring lowering. Please email for further info. £595.


Mercedes Sprinter and VW Crafter Rear end Kit


Price: £660.00

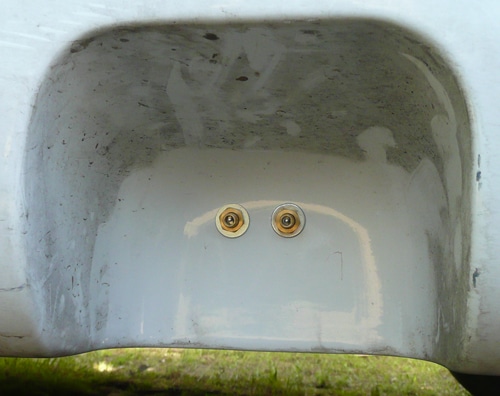

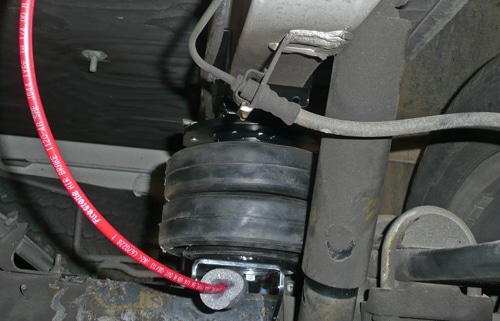

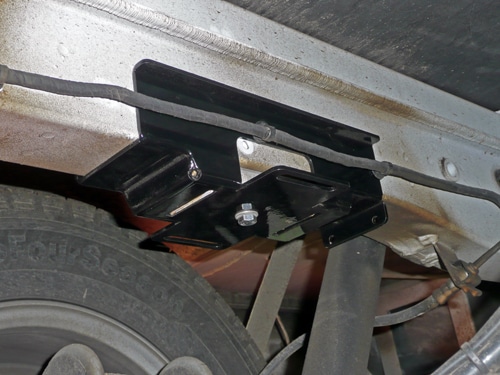

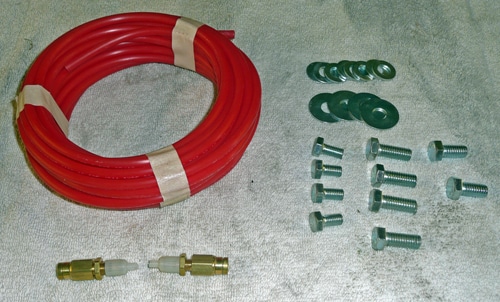

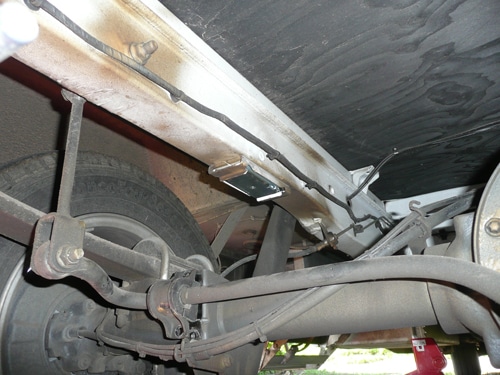

This is a rear end air suspension kit for the Mercedes Sprinter and VW Crafter from 2011 onwards. It fits vans, minibuses and motor-homes. The rear end kit is VERY simple to install using just a few bolts and is fully reversible if required. Inflated via Schrader valves (tyre valves) and nothing extra required to get kit working. OBA kits below are optional extras.


On Board Air Kit – Low Duty


Price: £495.00

For the ultimate in versatility the use of an On Board Air (OBA) supply gives the ability to lift and drop the vehicle at the touch of a button (including on the move). All basic kits come with Schrader valves (tyre valves) meaning that you can inflate the system anywhere you can inflate a tyre. This is fine for assistance kits as with big vans and motor-homes using “assistance” kits but for those using airbags as the sole suspension (Vito/T4/T5) and OBA kit allows adjustment for all variations of road, weather and load conditions.
This is the Low Duty OBA kit for irregular use. The compressor is rated at 15% duty cycle at 100 psi, and a maximum of 120 psi (bag max rating 100 psi). Appropriate pressure switch relay fittings and a small tank are included for instant adjustment.


On Board Air Kit – Standard Duty


Price: £695.00

For the ultimate in versatility the use of an On Board Air (OBA) supply gives the ability to lift and drop the vehicle at the touch of a button (including on the move). All basic kits come with Schrader valves (tyre valves) meaning that you can inflate the system anywhere you can inflate a tyre. This is fine for assistance kits as with big vans and motor-homes using “assistance” kits but for those using airbags as the sole suspension (Vito/T4/T5) and OBA kit allows adjustment for all variations of road, weather and load conditions.
This is the Standard Duty OBA kit for daily use. The compressor is rated at 100% duty cycle at 100 psi, and a maximum of 200 psi (bag max rating 100 psi). Appropriate pressure switch relay fittings and a small tank are included for instant adjustment.




 Please note that although our kits may not be in stock, they will be made up to order and are usually dispatched in 14 days. For more information, please contact us.

We do not usually stock full suspension kits on the shelf. They are made specifically for you once you place your order. This can take anywhere from a few days for common items to 90 days for unusual or complicated items or items which have a waiting list. If you require a more accurate indication then this can be provided by email and will be provided once any order is placed in any event.
