We offer a large range of airbags for vans, van derived motor-homes, and Pick-ups. The kit listed here for the Mercedes Sprinter (VW Crafter) is fairly typical for most installations, however it has an on board air supply which most do not, because this is a minibus with a load that can change by the minute.

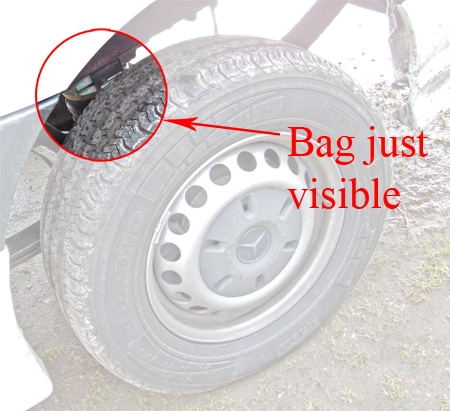

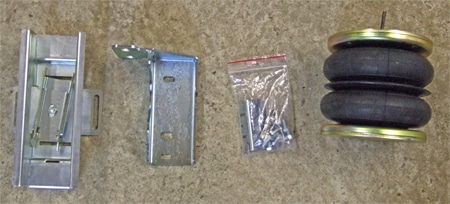

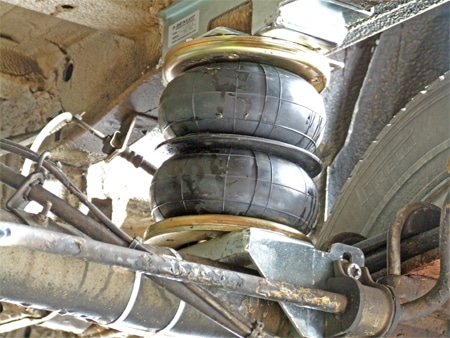

From the pictures below you can see an exampe fitting. This bag is an assister and so for the unladen vehicle has little effect upon ride height – actually it does lift about an inch but this is hardly noticeable.

This is all there is to most “assister kits”, but since this vehicle is a luxury Minibus, and can go from unladen to fully loaded in about 2 minutes, the customer specified dashboard control of the air system. This means an onboard air compressor, tank, and controller on the dash.

This particular vehicle was not nice when loaded and the air was designed to help. It also helps in crosswinds, and on bumpy roads. This vehicle drove better at all times following installation of the air.

Above we see the air compressor, and tank fitted to the Sprinter bracket under the vehicle. A cover is well advised to protect the compressor from water, salt and impacts. The cover and mounting bracket are not included in the kit but illustrate how we fitted it on this vehicle.

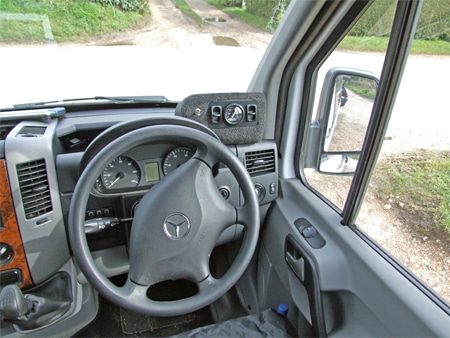

The switch is a master on/off for the system, and the paddles inflate the left and right bag, with the pressure shown on the left and right needles in the gauge (one red and one white). Pressure can be adjusted at any time, including whilst on the move. The controller is fitted so it can clearly be seen and adjusted but without being able to be knocked accidentally.

ALL ABOUT AIR SUSPENSION

What air suspension is, and why you should choose an AirRide kit

What is air suspension?

Air suspension basically involves replacing the metal suspension springs in your van with air bags, or air springs. This means you can set your van to any height you wish and constantly adjust the height of your van after installation and while on the road.

AirRide have been manufacturing and selling air suspension kits for over 20 years. We pride ourselves on supplying the very best kits available, with components chosen for reliability and safety. No-one else has our experience, knowledge of as many air suspension markets, or product range. We never compromise on safety to get costs down, and even our basic kits far exceed minimal functional requirements.

We are your go-to, one-stop-shop for all your air needs. Read on to get your van on air.

Full or rear suspension?

Kits for vans can either be full suspension or rear suspension. Full suspension kits, like most kits for cars, feature four air bags (one for each corner of the vehicle) and can be used to both raise and lower the vehicle.

Rear-end kits, otherwise known as load-support kits, are fitted to the rear of the vehicle only, in addition to the vehicle's existing metal spring. They are primarily used simply to lift the rear and bring it level with the front of the vehicle. They are ideal for vans that carry lots of load at the back and have, or are in danger of having, a sagging rear.

Safety

Specifications vary but safety never does! All our car kits:

  • Are fully circuit independent, with four circuits, front, back and side to side. We do not offer two-circuit systems for cars, as they are neither safe or legal for road use
  • Use the highest-quality, leak-free unions
  • Include safety-pressure relief valves
  • Includes an air tank gauge, if your kit includes a tank

AIR MANAGEMENT

Air works best with air management. Find out how to control your air here

Basic kits

If you’re only looking for something simple, we can still provide exactly what you’re after.  If you want air suspension without all the bells and whistles, we offer single-axle bag/bracket or strut kits or basic Schrader (tyre) valve kits with no On-Board Air.

If you want a bit more but still don’t want solenoids or a computer system, you can opt for a Manual Paddle Control kit, which uses four electric-window-style paddles to control your air on each corner of the vehicle.

Low Duty

For the ultimate in versatility the use of an On Board Air (OBA) supply gives the ability to lift and drop the vehicle at the touch of a button (including on the move). All basic kits come with Schrader valves (tyre valves) meaning that you can inflate the system anywhere you can inflate a tyre. This is fine for assistance kits as with big vans and motor-homes using "assistance" kits but for those using airbags as the sole suspension (Vito/T4/T5) and OBA kit allows adjustment for all variations of road, weather and load conditions.

This is the Low Duty OBA kit for irregular use. The compressor is rated at 15% duty cycle at 100 psi, and a maximum of 120 psi (bag max rating 100 psi). Appropriate pressure switch relay fittings and a small tank are included for instant adjustment.

Standard Duty

For the ultimate in versatility the use of an On Board Air (OBA) supply gives the ability to lift and drop the vehicle at the touch of a button (including on the move). All basic kits come with Schrader valves (tyre valves) meaning that you can inflate the system anywhere you can inflate a tyre. This is fine for assistance kits as with big vans and motor-homes using "assistance" kits but for those using airbags as the sole suspension (Vito/T4/T5) and OBA kit allows adjustment for all variations of road, weather and load conditions.

This is the Standard Duty OBA kit for daily use. The compressor is rated at 100% duty cycle at 100 psi, and a maximum of 200 psi (bag max rating 100 psi). Appropriate pressure switch relay fittings and a small tank are included for instant adjustment.

WHAT'S IN A MANAGEMENT KIT?

Exactly what you get in the box with each air management kit

Manual Paddle Control (MPC) kit

This is the most basic management kit. It’s easy to install, has the least amount of kit to fit, is reliable and can be upgraded for more sophistication later. MPC kits include:

  • Front and rear air suspension
  • Four manual paddle controls (one for each corner)
  • 100% duty cycle compressor
  • Three-gallon (US) air tank
  • Two dual-needle gauges (for reading pressure in the air bags)
  • One single-needle gauge (for reading pressure in the air tank)
  • An easy-to-fit airline (1/4")
  • Leak-free fittings
  • PRV, pressure switch, relay

Solenoid kit

The solenoid kit is also easy to install, albeit slightly more complicated than the MPC kit, reliable and can be upgraded to a computer kit later. Solenoid kits include:

  • Front and rear air suspension
  • Four electric suspension switches (one for each corner)
  • Eight solenoids (can be upgraded to various speeds) OR four manifolds of two solenoids each
  • 100% duty cycle compressor
  • Three-gallon (US) air tank
  • Two dual-needle gauges (for reading pressure in the air bags)
  • One single-needle gauge (for reading pressure in the air tank)
  • An easy-to-fit airline (1/4")
  • Leak-free fittings
  • PRV, pressure switch, relay

Computer kit

Computer kits are the easiest kits to install and still super reliable. They include:

  • Front and rear air suspension
  • Auto Pilot V2, AirLift 3P or AccuAir computer controller
  • Three-gallon (US), 200 PSI tank
  • 100% duty cycle compressor
  • A computer display (which means no gauges are necessary)
  • A phone app that can be used to control your air in or outside the vehicle
  • An easy-to-fit airline (1/4")
  • Leak-free fittings
  • PRV, pressure switch, relay

AIRRIDE RANGES FOR YOUR VEHICLE

The types of AirRide kit available for your van. Each one offers something different

AirRide Custom

AirRide Custom is a range of kits that we build to order.

We have lots of Custom kits already listed in our ‘Shop’ section, but if you can’t find a kit for your car we should still be able to build a Custom kit for you – just call us or send us an e-mail.

dunlop square

Dunlop kits are load-support kits, meaning they are fitted in addition to your vehicle's existing metal spring.

These kits are only fitted to the rear of a vehicle. They are ideal for balancing out the excessive load at the rear of a van and preventing the rear end from sagging, or lifting it again once it has already sagged.

Dunlop kits are pre-made, not made to order like a Custom kit.

Advantages

AirRide Custom kits:

✅ Can be tailor-made to your vehicle’s exact specifications, meaning they should always be a perfect fit

✅ Can be made for almost any vehicle, no matter how rare

✅ Are made by us, here at AirRide, ensuring the highest-quality standards available

✅ Are designed from the ground up to ensure they work best with your vehicle. For instance, our T5 kits have specially-designed front struts to support a heavier air bag

✅ Offer a really smooth ride and much better handling than standard suspension

Whats in the kit

It’s impossible to say exactly what’s in an AirRide Custom kit because each one is made from scratch to suit your vehicle’s needs!

If you want to know exactly what you’ll be getting, either before or after ordering the kit, call or email us and we’ll be happy to tell you once we know your vehicle and any necessary measurements.

AirRide Custom is available with air management, but can also come with a basic Schrader valve kit. Schrader valve kits cannot be used to control your air from on board the vehicle, instead requiring you to re-inflate your system every month or so at a local garage or petrol station. This works fine with load-support kits but is not recommended for full-suspension kits.

Advantages

Dunlop kits:

✅ Are bolt-on bumpstop replacement, meaning they’re so easy to install any garage should be able to fit it, and you might even be able to install it yourself

✅ Smooth out harsh rides

✅ Lift your T5's rear to help overcome grounding issues

✅  Level the front and rear of your T5, improving handling and decreasing the effect of side wind by stabilising it

Whats in the kit

Here’s exactly what you get in your kit:

⭐ Two bumpstop-replacement air bags

⭐ Precision-made brackets designed to fit effortlessly on your Mercedes

⭐ All the lines and fittings needed to fit the kit to your Mercedes

Dunlop kits are available with air management, but can also come with a basic Schrader valve kit. Schrader valve kits cannot be used to control your air from on board the vehicle, instead requiring you to re-inflate your system every month or so at a garage or petrol station. This is not recommended for full air suspension kits, but is fine for use with Dunlop kits, as all Dunlop kits are only fitted to the rear.
